The EVO Max series adopts Autel Autonomy’s autonomous flight technology, achieving global path planning, 3D scene reconstruction, autonomous obstacle avoidance, and return-to-home in complex environments. With the capability of precise navigation without GNSS, it offers high-precision visual navigation in scenarios where GNSS signals are blocked, weak, or heavily interfered with, ensuring stable and reliable flight with high accuracy and low latency. The industry’s first A-Mesh networking technology supports the free networking of multiple devices, achieving integrated air-ground network coverage. Featuring a “dual fisheye vision + millimeter-wave radar” multi- sensor fusion perception technology, it has 720° omnidirectional sensing and obstacle avoidance capabilities. The EVO Max series is equipped with the FusionLight camera 4T and FusionLight camera 4N, integrating a zoom camera, an ultra-starlight level night vision camera, an ultra-sensitive wide-angle camera, a thermal imaging camera, and a laser rangefinder. It efficiently empowers public safety, energy inspection, emergency management, and other fields, setting a new benchmark for industry applications of drones.

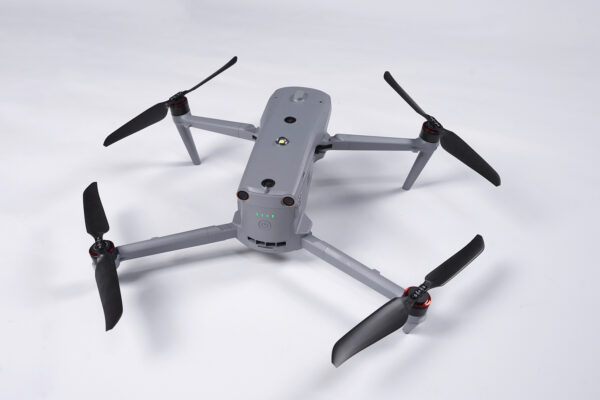

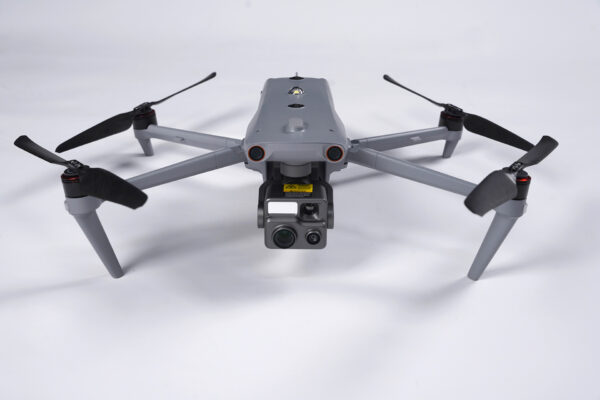

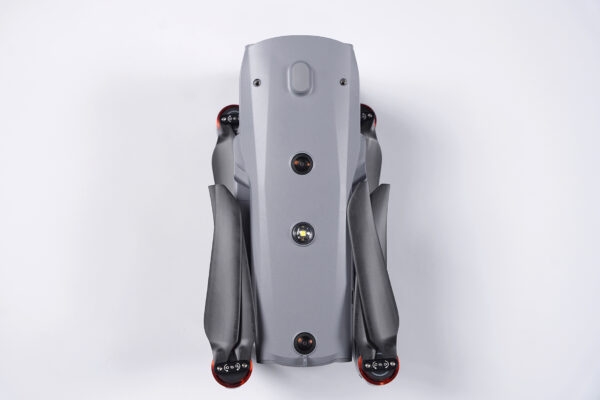

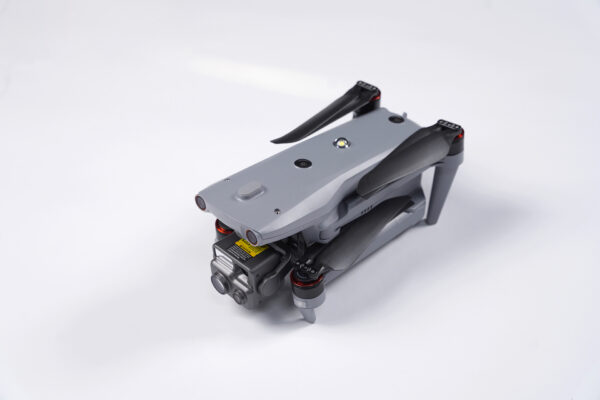

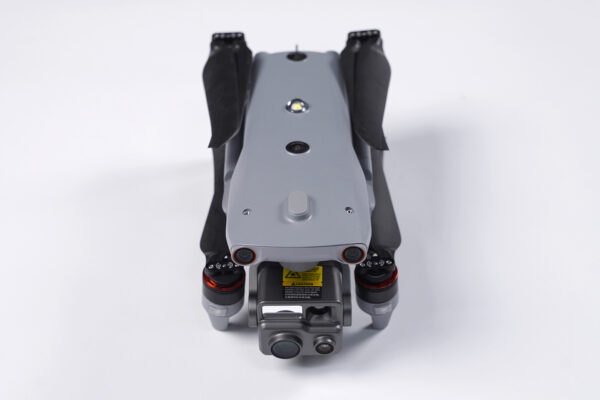

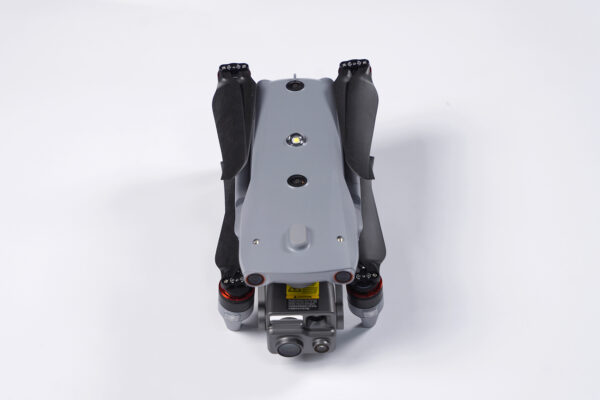

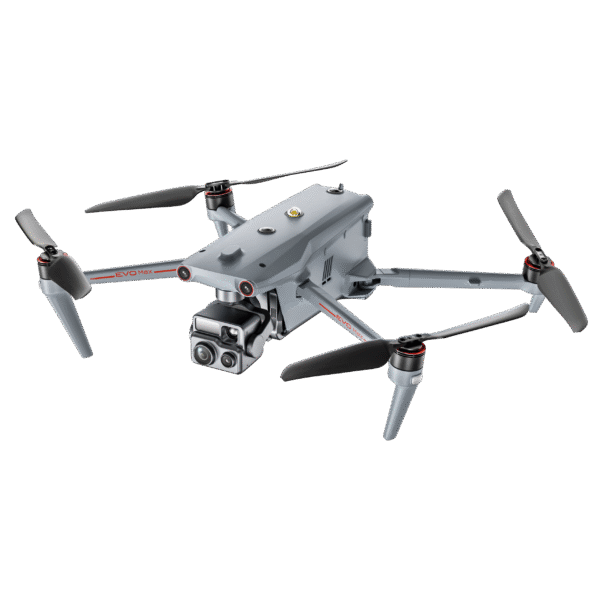

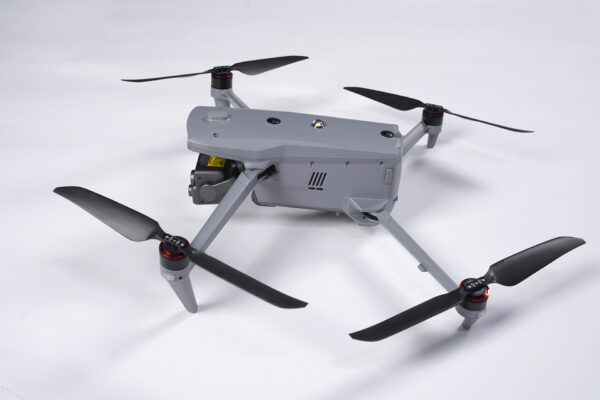

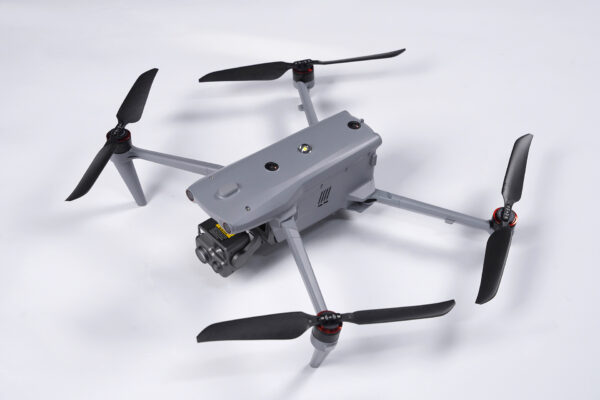

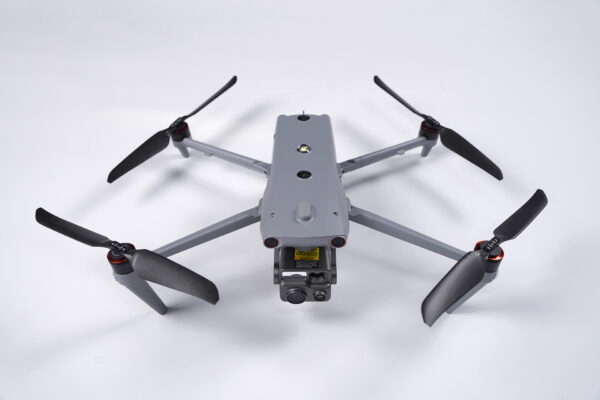

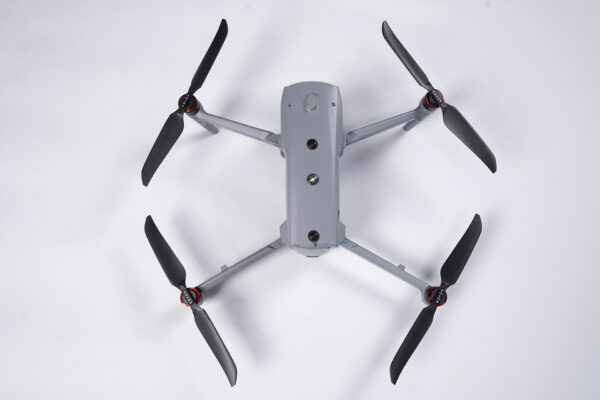

EVO MAX 4T –A Leader of Drone Intelligence

The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

Autonomous Path Finding：Autel’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Navigation in GPS Denied Environment: Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.

Accurate Object Identification and Tracking : Based on Autel’s AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

No Blind Spots-Ultimate Obstacle Avoidance

EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Jam-Anti Interference

The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.

Weather Rating-IP43

A-Mesh 1.0 – The Drone Industry’s First Mesh Networking Technology

EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Strong Anti-Interference: The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

Beyond-Line-of-Sight Applications: With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness

Full-Fleet Control:Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

Enhanced Range: Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

Autel SkyLink 3.0

The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.

12.4 miles: Image Transmission Distance 1080p/60fps: Real-Time Image Quality

900MHz/2.4GHz/5.2GHz/5.8GHz** : Frequency Bands <150ms Latency

Mission Ready Payload

The payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.

Wide Camera: 50MP 1/1.28″ CMOS Aperture: f/1.9 DFVO: 85° Equivalent: 23 mm

Zoom Camera: 48MP 8K 10x Optical Zoom 160x Max. Hybrid Zoom
Aperture: f/2.8-f/4.8

Thermal Camera: 640×512 Aperture: 13mm 16x Digital Zoom
Temperature Measurement Range: -20°C to 550°C

Laser Rangefinder: Measuring Range: 5 – 1200m
Measurement Accuracy: +1m

Autel Enterprise App Platform

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T’s mission capability.

Smart Features

3D Map Planning: Plan, create, and execute 3D waypoint mission plan on a 3D map.

Quick Mission: Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

Mission Reproduction: With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

Rectangular Mission: One-click automatic generation of a rectangular flight area.

Automatic Mission Generation And Data Capture(pending future update):Automatically produce routes by adding regional boundary points through dots or importing KML files.

Waypoint Missions :Users can add waypointsfor flexible, non-structured flight paths.

Data Security

Privacy Protection: Data involving user and aircraft information, including flight logs, locations,and account information can only be physically accessed via the aircraft locally.

Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.

Enhanced Live-View

Multi-channel Projection Screen:Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.

AR Scene:Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone’s location and avoid airborne risks.

Autel SDK

The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.(Note: Only mobile SDK is availbel at this moment,other 2 not released yet)

Widely Application

Product Specifications

Drone
EVO Max 4T V2 Weight	1665 g (ABX41-D smart battery, Fusion 4T V2 gimbal, and propellers included)
EVO Max 4N V2 Weight	1700 g (ABX41-D smart battery, Fusion 4N V2 gimbal, and propellers included)
EVO Max 4NZ V2 Weight	1715 g (ABX41-D smart battery, Fusion 4NZ-L V2 gimbal, and propellers included)
Maximum Take-Off Mass	1999 g 1890 g (for C2 Certification in EU)
Fuselage Dimensions	563×657×147 mm (unfolded, incl. propellers)
Diagonal Wheelbase	Diagonal: 467 mm
Propeller Size	11 inch, 1158
Propeller Pitch	5.8 inch
Propeller Material	Nylon + Carbon Fiber
Propeller Weight	10.3 g
Maximum Propeller Rotational Speed	7500 RPM
Operating Temperature	-20℃ to +50℃ (without load) -20℃ to +40℃ (full load)
Internal Storage	128GB internal storage, with 64GB of available space* * Remaining available space will vary with different firmware versions.
Supported microSD Cards	Supports Class 10, UHS-3 or higher microSD cards, up to 1TB
GNSS	GPS + Galileo + BDS + GLONASS
Hot Swap Battery	Supported* * The hot swap battery function must be enabled in the flight application in advance.
Strobe	Integrated
Flight Performance
Max Ascent Speed	Slow: 2.5 m/s Smooth: 3 m/s Standard: 6 m/s Ludicrous: 8 m/s
Max Descent Speed	Slow: 2.5 m/s Smooth: 3 m/s Standard: 6 m/s Ludicrous: 6 m/s
Max Flight Speed*	Slow: 3 m/s Smooth: 10 m/s Standard: 15 m/s (forward & backward), 10 m/s (sidewards) Ludicrous: 23 m/s (forward), 18 m/s (backward), 20 m/s (sidewards) * Windless Near Sea Level.
Max Service Ceiling Above Sea Level	4500 meters (use ABX41-D smart battery)
Max Flight Altitude*	Chinese Mainland or EU Laws: No more than 120 meters US Law: No more than 400 feet * The altitude can be set from 20 to 800 meters in the flight application. To set altitude higher than required by law, authority approval is required.
Max Flight Time*	42 minutes * Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference.
Max Flight Distance*	25 km * Test data from lab with windless environment in the speed of 14 m/s during horizonal flight and only for reference.
Max Hover Time*	37 minutes * Test data from lab with windless environment during hovering and only for reference.
Max Wind Speed Resistance	12 m/s
Max Pitch Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
Max Angular Velocity	Pitch axis: 300°/s Yaw axis: 120°/s
Hovering Accuracy	Vertically ±0.1 m (when visual positioning works normally) ±0.5 m (when GNSS works normally) Horizontally ±0.3 m (when visual positioning works normally) ±0.5 m (when high-precision positioning system works normally)
Wi-Fi
Protocol	802.11a/b/g/n/ac/ax
Operating Frequency	2.4G: 2.400–2.476GHz，2.400–2.4835GHz 5.2G:* 5.15-5.25GHz，5.17-5.25GHz* 5.8G: 5.725-5.829GHz，5.725-5.850GHz Only applies to SRRC regions Only applies to FCC, CE (Germany excluded) and UKCA regions * Only applies to Germany Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Equivalent Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Video Transmission
Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.2G: 5.15-5.25GHz, 5.17-5.25GHz* 5.8G: 5.725-5.829GHz, 5.725-5.850GHz * Only applicable to FCC and ISED regions. Only applicable to SRRC regions. * Only applicable to FCC, CE (Germany excluded) and UKCA regions **** Only applies to Germany Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Equivalent Isotropic Radiated Power (EIRP)	900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23 dBm (CE/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA)
Max Transmission Distance*	FCC: 15km SRRC/CE: 8km * Without Interference and Blocking.
Visual Obstacle Avoidance Sensing System
Obstacle Sensing Range	Forward: 0.5 ~ 30 m Backward: 0.5 ~ 25 m Sidewards: 0.5 ~ 40 m Upward: 0.5 ~ 40 m Downward: 0.5 – 35 m
FOV	Forward & Backward: 60°(H), 80°(V) Upward: 180° (sidewards), 120° (forward & backward) Downward: 180° (sidewards), 120° (forward & backward)
Operating Environment	Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment). Downwards: The surface has rich textures, and the surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).
Millimeter-Wave Radar Sensing System
Transmission Frequency	24G: 24.0 – 24.25 GHz 60G: 60 – 64 GHz
Equivalent Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20dBm (CE/UKCA/FCC), ≤13dBm (SRRC)
Sensing Range	60G millimeter-wave radar: Upward: 0.3 ~ 18 m @ high voltage transmission line Downward: 0.15 ~ 40 m @ concrete floor Forward & Backward: 0.15 ~ 18 m @ high voltage transmission line, with flight speed 10 m/s Sidewards: 0.15 ~ 18 m @ high voltage transmission line, with flight speed 10 m/s 24G millimeter-wave radar: Downward: 0.8 ~ 12 m @ concrete floor
FOV	Horizontal (6dB): ±30°/±15° (60G/24G) Vertical (6dB): ±40°/±15° (60GHz/24G)
Operating Environment	60G millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, transmission line, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle’s ability to reflect electromagnetic waves and its surface size. 24G millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.

Gimbal

Fusion 4T V2
Gimbal Weight	214 g
Mechanical Range	Tile: -135° to 45° Roll: -50° to 50° Pan: -45° to 45°
Controllable Range	Tilt: -90° to 30°
Stabilization System	3-axis mechanical gimbal (tilt, roll, pan)
Max Control Speed	Tilt: 100°/s
Angular Vibration Range	<0.005°
Zoom Camera
Image Sensor	1/2″ CMOS. Effective pixels: 48M
Lens	DFOV: 40°-10.3° Equivalent Focal Length: 64 – 234 mm Aperture: f/2.8 – f/4.8 Focus: 2 m ~ ∞
ISO Range	Auto: ISO100 ~ ISO6400 Manual: ISO100 ~ ISO6400
Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Zoom	2.7 – 10x continuous optical zoom, 20x hybrid zoom and 160x digital zoom
Photo Size	JPG: 4000×3000, 8000×6000 DNG: 4000×3000
Still Photography Mode	Single
Video Resolution	4000×3000@30fps
Max Video Bitrate	60Mbps
Video Format	MP4
Video Subtitles	Supported
Video Encoding	H.264/H.265
Supported File System	exFAT/FAT32
Wide-angle camera
Image Sensor	1/2″ CMOS. Effective pixels: 48M
Lens	DFOV: 83.4° Equivalent focal length: 24 mm Aperture: f/2.8 Focus: 1.5 m ~ ∞
ISO Range	Auto/Manual: ISO100 ~ ISO6400 Night Mode: ISO100 ~ ISO320000 (auto)
Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Zoom	1 – 2.6x digital zoom
Photo Size	JPG: 4000×3000, 8000×6000 DNG: 4000×3000
Still Photography Mode	Single
Video Resolution	4000×3000@30fps Night Mode: 2400×1800@30fps
Max Video Bitrate	60Mbps
Video Format	MP4
Video Subtitles	Supported
Video Encoding	H.264/H.265
Supported File System	exFAT/FAT32
Infrared Thermal Camera
Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
Equivalent Digital Zoom Rate	1-16x digital zoom
Noise Equivalent Temperature Difference	≤50mK@25℃, F#1.0
Pixel Pitch	12 um
Spectral Band	8 – 14 um
Temperature Measurement Method	Center Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement
Temperature Measurement Range	High Gain Mode: -20℃ to 150℃ Low Gain Mode: 0 to 550℃
Temperature Measurement Accuracy	±2℃ or reading ±2% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃
Temperature Measurement Distance	1-100 m
Temperature Alert	In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
Photo Size	640×512
Still Photography Mode	Single
Photo Format*	JPG * the images contain temperature information and are parsed by dedicated SDK and PC tools.
Video Resolution	640×512@30fps
Max Video Bitrate	10Mbps
Video Format	MP4
Supported File System	exFAT/FAT32
Laser Rangefinder
Wavelength	905 nm
Laser Safety	Class 1
Measuring Accuracy	± (1 m + D×0.15%) Where D is the distance to a vertical reflecting plane.
Measurement Range	5 – 1200 m

Fusion 4N V2
Gimbal Weight	258 g
Mechanical Range	Tile: -135° to 55° Roll: -50° to 50° Pan: -45° to 45°
Controllable Range	Tilt: -90° to 30°
Stabilization System	3-axis mechanical gimbal (tilt, roll, pan)
Max Control Speed	Tilt: 100°/s
Angular Vibration Range	<0.005°
Night Vision Camera
Image Sensor	1.69″ CMOS. Effective pixels: 2.3M
Lens	DFOV: 52°±2° Effective Focal Length: 11.2 mm Aperture: f/1.4 Focus: 10 m ~ ∞
Pixel Pitch	12 um
ISO Range	Auto/Manual: ISO100 ~ ISO440000 Night Mode: ISO100 ~ ISO440000 (auto)
Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Zoom	1 ~ 8x digital zoom
Photo Size	JPG: 1920×1200
Still Photography Mode	Single
Video Resolution	1920×1200@30fps
Max Video Bitrate	20Mbps
Video Format	MP4
Video Subtitles	Supported
Video Encoding	H.264/H.265
Supported File System	exFAT/FAT32
Wide-angle camera
Image Sensor	1/0.98″ CMOS. Effective pixels: 50M
Lens	DFOV: 85.01° Equivalent focal length: 23.52 mm Aperture: f/1.85 Focus: 0.5 m ~ ∞
ISO Range	Auto/Manual: ISO100 ~ ISO6400 Night Mode: ISO100 ~ ISO320000 (auto)
Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Zoom	1 ~ 8x digital zoom
Photo Size	JPG: 4096×3072, 8192×6144
Still Photography Mode	Single
Video Resolution	4000×3000@30fps
Max Video Bitrate	60Mbps
Video Format	MP4
Video Subtitles	Supported
Video Encoding	H.264/H.265
Supported File System	exFAT/FAT32
Infrared Thermal Camera
Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
Equivalent Digital Zoom Rate	1-16x digital zoom
Noise Equivalent Temperature Difference	≤50mK@25℃, F#1.0
Pixel Pitch	12 um
Spectral Band	8 – 14 um
Temperature Measurement Method	Center Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement
Temperature Measurement Range	High Gain Mode: -20℃ to 150℃ Low Gain Mode: 0 to 550℃
Temperature Measurement Accuracy	±2℃ or reading ±2% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃
Temperature Measurement Distance	1 – 100 m
Temperature Alert	In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
Photo Size	640×512
Still Photography Mode	Single
Photo Format*	JPG * the images contain temperature information and are parsed by dedicated SDK and PC tools.
Video Resolution	640×512@30fps
Max Video Bitrate	10Mbps
Video Format	MP4
Supported File System	exFAT/FAT32
Laser Rangefinder
Wavelength	905 nm
Laser Safety	Class 1
Measuring Accuracy	± (1 m + D×0.15%) Where D is the distance to a vertical reflecting plane.
Measurement Range	5 – 1200 m

Fusion 4NZ-L V2

Fusion 4NZ-L V2
Gimbal Weight	263 g
Mechanical Range	Tile: -135° to 50° Roll: -50° to 50° Pan: -45° to 45°
Controllable Range	Tilt: -90° to 30°
Stabilization System	3-axis mechanical gimbal (tilt, roll, pan)
Max Control Speed	Tilt: 100°/s
Angular Vibration Range	<0.005°
Wide-angle Night Vision Camera
Image Sensor	1/1.2″ CMOS. Effective pixels: 8M
Lens	DFOV: 45° Equivalent Focal Length: 53.9 mm Aperture: f/1.55±5% Focus: 20 m ~ ∞
Pixel Pitch	2.9 um
ISO Range	Auto/Manual: ISO100 ~ ISO100000 Night Mode: ISO100 ~ ISO100000
Shutter Speed	Shooting: 1/30s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Zoom	1 ~ 3.2x digital zoom
Photo Size	JPG: 3840×2160
Still Photography Mode	Single
Video Resolution	3840×2160@30fps Night Mode: 2720×1528@30fps
Max Video Bitrate	50Mbps
Video Format	MP4
Video Subtitles	Supported
Video Encoding	H.264/H.265
Supported File System	exFAT/FAT32
Telephoto Night Vision Camera
Image Sensor	1/1.2″ CMOS. Effective pixels: 8M
Lens	DFOV: 16.3° Equivalent focal length: 147.3 mm Aperture: f/1.75±5% Focus: 20 m ~ ∞
Pixel Pitch	2.9 um
ISO Range	Auto/Manual: ISO100 ~ ISO100000 Night Mode: ISO100 ~ ISO100000
Shutter Speed	Shooting: 1/30s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Zoom	3.3 ~ 16x digital zoom
Photo Size	JPG: 3840×2160
Still Photography Mode	Single
Video Resolution	3840×2160@30fps Night Mode: 2720×1528@30fps
Max Video Bitrate	50Mbps
Video Format	MP4
Video Subtitles	Supported
Video Encoding	H.264/H.265
Supported File System	exFAT/FAT32
Infrared Thermal Camera
Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV: 22° Focal Length: 25 mm Aperture: f/1.2 Focusing Distance: 13 m ~ ∞
Equivalent Digital Zoom Rate	1-16x digital zoom
Noise Equivalent Temperature Difference	≤50mK@25℃, F#1.0
Pixel Pitch	12 um
Spectral Band	8 – 14 um
Temperature Measurement Method	Center Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement
Temperature Measurement Range	High Gain Mode: -20℃ to 150℃ Low Gain Mode: 0 to 550℃
Temperature Measurement Accuracy	±3℃ or reading ±3% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃
Temperature Measurement Distance	1 – 100m
Temperature Alert	In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
Photo Size	640×512
Still Photography Mode	Single
Photo Format*	JPG * the images contain temperature information and are parsed by dedicated SDK and PC tools.
Video Resolution	640×512@30fps
Max Video Bitrate	10Mbps
Video Format	MP4
Supported File System	exFAT/FAT32
Laser Rangefinder
Wavelength	905 nm
Laser Safety	Class 1
Measuring Accuracy	± (1 m + D×0.15%) Where D is the distance to a vertical reflecting plane.
Measurement Range	5 – 1200 m
Infrared laser fill light
Laser Safety	Class 3B
FOV	Telephoto: 8°* * The maximum fill light distance is 200 meters. Wide-angle: 30° The fill light effect is better at a distance of 50 meters.

Remote Controller

Autel Smart Controller V3
Body Material	PC+ABS
RC Dimensions	269×189×87 mm (antennas folded, sticks and bracket included) 269×189×173 mm (antennas vertical to screen, sticks and bracket included) 269×302×87 mm (antennas unfolded, sticks and bracket included)
RC Weight	1195 g (smart controller cover excluded) 1365 g (smart controller cover included)
Operating Temperature	-20℃ to 40℃
Storage Temperature	+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
Ingress Protection Rating	IP43* * Long-term use may cause failure.
System Performance
Operating System	Based on Android 11
Pre-installed flight Application	Autel Enterprise
Application Installation	Supports the installation of third-party Android applications
Video Performance	Smooth playback of 4K@24fps H.264/H.265 videos
Internal Storage	128GB* * Does not support microSD card extension.
GNSS	GPS + Galileo + BDS + GLONASS
Port
HDMI	Outputs up to 1080P@60fps video
USB-C	Charging: supports PD 60W fast charging and QC 18W fast charging. Data: USB3.1 Gen2
USB-A	Power: 5V/2A Data: USB2.0
Wi-Fi
Protocol	802.11a/b/g/n/ac
Operating Frequency	2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G:* 5.725-5.829GHz, 5.725-5.850GHz Only applies to SRRC region Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Equivalent Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Bluetooth
Protocol	Bluetooth 5.0
Operating Frequency	2.400 – 2.4835 GHz Note: In some regions, frequency range is specified. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)	≤20dBm
Video Transmission
Antenna	Dual antennas, 1T2R, detachable design
Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Max Transmission Distance*	FCC: 15 km SRRC/CE: 8 km * Without Interference and Blocking.
Display
Type	TFT LCD
Dimensions	7.9 inches
Resolution	2048×1536
Max Brightness	2000 nits
Refresh Rate	60Hz
Touch Control	Supported
Battery
Battery Replacement	Built-in, not supported
Battery Type	Li-Po 3S
Rated Capacity	5800 mAh
Rated Energy	67 Wh
Voltage	11.55V
Charging Time	About 120 minutes* * Charging time depends on the actual remaining power.
Battery Endurance	Max brightness: 2.5 hours 50% brightness: 4.0 hours

Smart Battery

ABX41-D Smart Battery
Battery Weight	530 g
Battery Dimension	158.4×74.3×50.7 mm
Operating Temperature	-20℃ to 50℃
Storage Temperature	-20℃ to +35℃
Ideal Storage Environment	+22℃ to +28℃, 65±20%RH, 60% battery level
Battery Type	Li-Po 4S
Rated Capacity	9248mAh
Rated Energy	136.5Wh
Voltage	DC 14.76V
Charging Voltage Limit	DC 17.0V
Rated Charging Power	120W
Max Charging Power	282W
Battery Charge Temperature	+5℃ to +45℃* * When the battery temperature is below +5℃, the battery stops charging and activates self-heating. When the battery temperature is above +45℃, the battery stops charging.
Service life	200 discharge cycles* * If the number of discharge cycles exceeds 200, the battery should be replaced with a new one.
Battery Charger MDX120W
Power Input	100-240V~ 50/60Hz, 3.0A
Output Port	Battery charging port/USB-C
Battery Charging port	17V⎓7.06A
USB-C	5.0V⎓3.0A, 9.0V⎓3.0A, 12.0V⎓2.5A
Total Power Output	120.0W Max

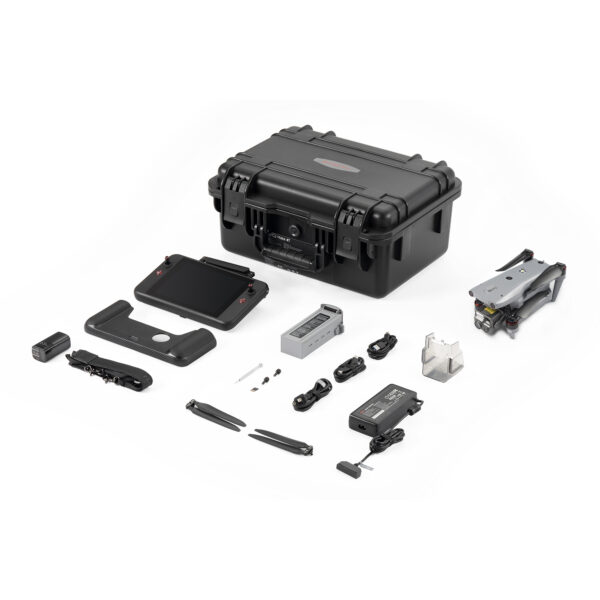

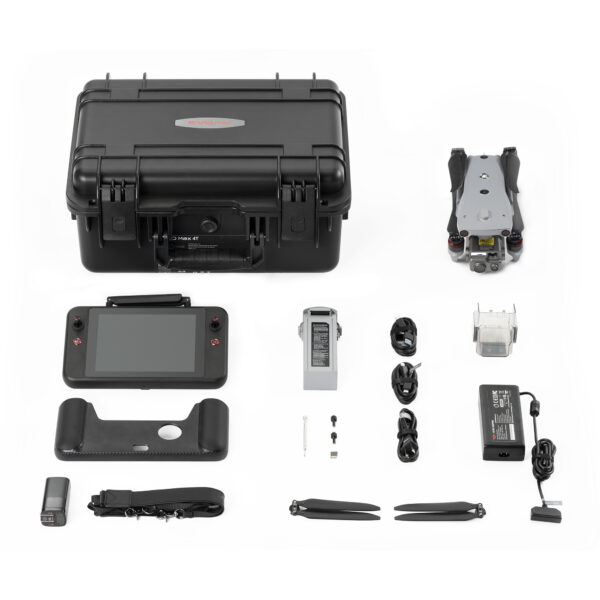

EVO Max 4T V2

Tarne

Sulle võib meeldida ka…

Seotud tooted

telekad

sülearvutid

nutitelefonid

audio
